Fire Fighting Pumps
Booster Station

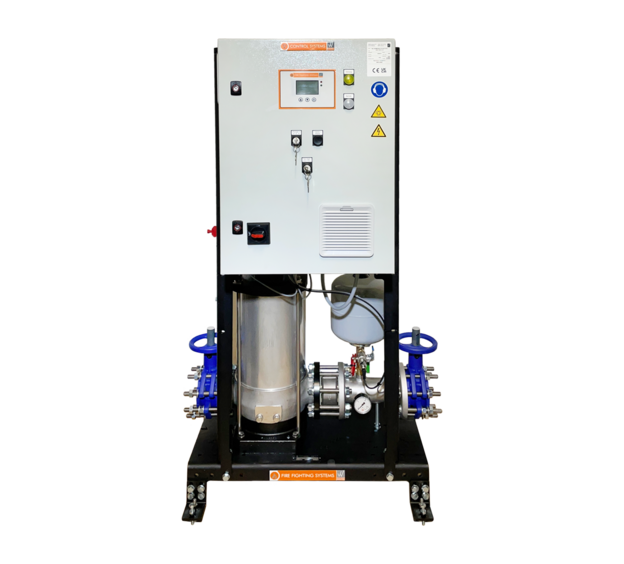

Fire fighting boster stations (DEA) for indirect or direct connection to wall hydrant type S and F. Fully automated boost station equipped with one or two pumps and compact design for for feeding plants with fire fighting water.
Range of application
Materials
Standard materials for pump casing and impeller are stainless steel. Liquid tank made of HD PE acc. to DIN14462. Base frame coated with high-qualtiy ACC layer for high corrosion protection.
Pumping media
Clean water
Drive
Low noise IEC-standard three phase motor according to efficiency class IE2 or IE3. Other executions on special request.
Technical details
Operating Data
| Flow rate | Q | up to 84 m³/h |
| Delivery height | H | up to 200 m |
| Medium temperature | t | up to +140°C |
| Operating pressure | p | up to 25 bar |
Other operating conditions possible on request!
